Omrani M D, Azizi F, Rajabibazl M, Safavi Naini N, Omrani S, Mona Abbasi A et al . Can we rely on the multiplex ligation-dependent probe amplification method (MLPA) for prenatal diagnosis?. IJRM 2014; 12 (4) :263-268
URL: http://ijrm.ir/article-1-527-en.html
1- Department of Clinical Genetics, Faculty of Medicine, Shahid Beheshti University of Medical Sciences, Tehran, Iran
2- Department of Clinical Biochemistry, Faculty of Medicine, Shahid Beheshti University of Medical Sciences, Tehran, Iran
3- Faculty of Medicine, Shahid Beheshti University of Medical Sciences, Tehran, Iran
4- Edward Via College of Osteopathic Medicine, Virginia, USA
5- Feto-Maternal Unit, Mahdieh Hospital, Shahid Beheshti, University, Tehran, Iran , Soraya_saleh2000@yahoo.co.uk
Full-Text [PDF 610 kb]   (545 Downloads)     |   Abstract (HTML)  (2425 Views)
Full-Text:   (406 Views)
Introduction

Chromosomal abnormalities are often the origin of miscarriage and birth defects. The most common are autosomal aneuploidy (75%), polyploidy (13%), sex chromosome abnormalities (8%) and structural imbalance (4%) (1, 2). Trisomy of chromosome 21, 13, or 18, in addition to sex chromosome aneuploidy, account for 60-80% of aberrant fetal karyotypes identified in cultured amniotic fluid cells (3). Prenatal diagnosis is commonly suggested to all pregnant women who have an increased risk of carrying a child with a chromosomal abnormality. In these cases, the diagnostic process requires amniocentesis, which is highly invasive and often risky (4). Although traditional karyotyping is a powerful method that reveals a range of numerical and structural chromosomal abnormalities with high precision (99.4-99.9%), it requires fetal cell cultures, making this method time-consuming, labor-intensive, and expensive (5-7). The detection efficiency and precision of karyotyping may also be considered a disadvantage since it detects chromosomal abnormalities that may only hold ambiguous or mild clinical relevance. The latter can result in patient anxiety and emotional dilemmas regarding the continuation of pregnancy, even though the results are unclear or the suggested phenotype may prove to be comparatively mild (8, 9).
In developed countries, new molecular methods have become accessible for rapid aneuploidy detection of the most common chromosome abnormalities (aneuploidies of chromosomes X, Y, 13, 18 and 21). For example, in a number of prenatal centers, Quantitative Fluorescent PCR (QF-PCR) analysis is already being suggested to women undergoing invasive testing. Other centers carry out multiplex ligation-dependent probe amplification (MLPA) for the rapid detection of aneuploidies of chromosomes X, Y, 13, 18 and 21 in amniotic fluid cells (10, 11). MLPA is a new PCR-based method that differentiates the copy numbers of specific sequences of DNA. This technique applies two-part probes of unique length that, when hybridized to adjacent target sequences on genomic DNA, can be joined together by the enzyme DNA ligase. This permits the amplification of all target sites, using a single primer pair that is complementary to the two free ends which are common to all probes.
The products are run on a capillary electrophoresis system and detached by size, so that each peak is the amplification product of a specific probe. Using a series of normalization calculations, copy numbers can be specified for each target sequence and thus, for each chromosome. MLPA is a quick high output method shown to be powerful in pre-clinical settings. It permits for relative quantification of up to 50 different target sequences with just one reaction. MLPA eschews the detection of abnormalities with uncharted clinical relevance. It is less labor-intensive and cheaper compared to karyotyping and FISH (1, 5). This pilot study was designed and carried out in effort to convince the policy makers and stakeholders of the Iranian healthcare system of the value of this technique for screening and diagnosis purposes at hospitals and pre-natal centers throughout the country.

Materials and methods

In this cross-sectional study, participants were 55 pregnant females who had chosen to undergo amniocentesis, for either advanced maternal age or increased risk following pre-natal screening, as referred by Shahid Beheshti's Mahdieh Women Hospital from 2012-2013.
The age range of this sample population was between 22-39 years old. For each case, 15-20 ml amniotic fluid samples (without blood contamination) were collected. Meanwhile, the peripheral blood samples were collected from 10 unrelated, healthy female for use as the control sample, and set up of the MLPA reaction. Informed consent was explained and acquired from each case. The study was approved by the ethics committee of Shahid Beheshti University of Medical Sciences. Genomic DNA was extracted from peripheral blood by use of the salting out purification method. Amniotic fluid cell’s DNA were collected (5 ml/sample) using the QIAamp DNA Mini kit (Qiagen; Hilden, Germany). To check the quality of the obtained DNA, both samples were run on a 0.5% agarose gel and optical density (OD) was measured at 260 nm and 280 nm using a spectrophotometer (Biophotometer plus; Eppendorf, Germany). Moreover, the concentration of each DNA sample was standardized to 100ng/μL.
MLPA reagents (P095-A2 aneuploidy probe mixes) were purchased from MRC-Holland (Amsterdam, Kingdom of the Netherlands). The MLPA reaction was carried out using standard protocol. MLPA is not expected to detect low-grade chromosomal mosaicism. Peripheral blood cells or amniotic fluid cells (10-15 ml/sample) were cultured in accordance with the standard methods (Figure 1) (13). In addition, all samples were checked by QF-PCR method (11, 14-15). The results collected from MLPA, QF-PCR, and karyotyping were compared.

Statistical analysis
The data analyses of the MLPA tests were performed without the knowledge of karyotype results. The size and peak areas for each probe are quantified and processed by data-analysis software (Genemarker v1.85, Soft Genetics, LLC; State College, PA, USA) (12). Relative probe signals were assayed and compared with samples of normal male and female sex. In normal chromosome samples, the relative probe signal for all probes was expected as follows. A normal value is identified as a relative probe signal between 0.7 and 1.3. A relative probe value of <0.7 signifies a chromosome monosomy, while a relative  probe  value  of >1.3  is  indicative  of
chromosome trisomy.

Results

In total, 55 amniotic fluid samples were tested with MLPA, QF-PCR, and karyotyping methods. In all samples, the results were in concordance with one another. In this study, one case with chromosome X monosomy [45, XO] was identified successfully by all methods. Figure 2 shows the abnormal copy numbers on chromosome X for one fetus sample. Diagnostic accuracy of MLPA was 1.0 (95% confidence interval (CI) 0.99-1.0) with a sensitivity of 100% (95% CI 0.96-1.0) and a specificity of 100% (95% CI 0.999-1.0).



Figure 1. Image of amniotic fluid cells grown in Amniomax media after 15 days (Gibco, USA) ( Magnification 400X).To double check the results of MLPA obtained from the amniotic cells in the first day, they were grown and the experiment repeated with larger amount of cells and DNA.

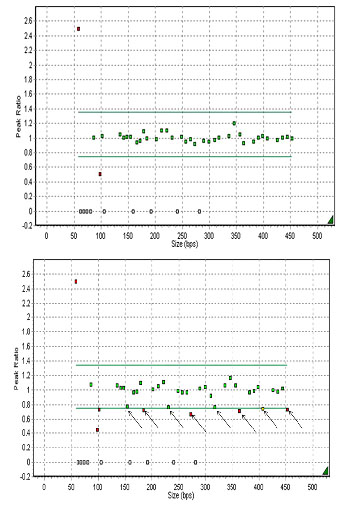

Figure 2. This is a part of the MLPA analysis report (Genemarker v1.85) of a normal disomic female and monosomic X female’s DNA, respectively. Normal relative probe signals are between the grey lines (0.7-1.3), and are depicted in green. Aberrant relative probe signals are depicted in red. The arrows indicate the eight chromosomes X signals, which all show a relative decrease in sample monosomic as compared to normal.


Discussion

The availability of quick, clear, and inexpensive genetic screening method for high-risk pregnancies is the reason for utilization of MLPA (16, 17). As of yet, two studies show that pregnant women prefer rapid aneuploidy recognition to karyotyping (1, 18). A Swedish survey showed that 70% of women preferred rapid testing to karyotyping. In the Netherlands, a nationwide prospective cohort study confirmed the accuracy of MLPA to detect aneuploidies of chromosomes 21, 13, 18, X and Y (5).
More studies by Gerdes et al, Van Opstal et al and Kooper et al added to the evidence for applicability of MLPA for detection of chromosomal aneuploidies in amniotic fluid (11, 14, 18, 19). At the level of public health, these investigations offer that rapid testing is the preferred strategy (5, 20-21). Compared to other methods accessible for rapid aneuploidy detection (RAD) [i.e. quantitative fluorescence polymerase chain reaction (QF-PCR) and fluorescence in situ hybridization (FISH)], MLPA has the advantage of detecting up to 50 loci in a single assay. Compared to FISH, MLPA is appropriate for high-output testing and is less expensive. Compared to QF-PCR, MLPA can easily be spread out to other genomic regions of known clinical relevance and can also be used as a highly effective method for the detection of sub-telomeric imbalances (22-27).
The MLPA technology entails ligation of probes corresponding to a chromosome-specific sequence that is unique within the genome. In contrast to polymorphic loci used for QF-PCR, these chromosome-specific sequences represent little or no variation, which avoids non-informativeness of the targeted sequences. Therefore, the MLPA method may be appropriate for combining speed and targeted testing of specific chromosomal inter- and/or intragenic regions. QF-PCR has the same inherent limitations as MLPA, in that it will not detect structural chromosome abnormalities; however, in contrast to QF-PCR, MLPA will not show 69, XXX triploidy (1, 28).
QF-PCR and MLPA are considered to be valid alternatives to karyotyping for specific referral reasons, albeit some clinically significant aberrations will remain unrecognized (1). Our study showed the successful use of MLPA for clinical molecular diagnosis with rapid and sensitive screening for chromosomal aneuploidies. Because processing and data analysis are completely automated, MLPA should be appropriate for large scale testing for chromosome aneuploidies in clinical diagnostic settings.
The purpose of previous studies was the substitution of rapid molecular techniques, such as MLPA, in place of traditional karyotype. In developing countries, prenatal diagnosis procedures were not well established and frequent studies needed to be carried out until stakeholders would accept it. In this study, we attempted to portray the positive results of these new techniques, in pursuit of applying them in educational hospitals.

Acknowledgements

We are grateful to the medical staff of Mahdieh Women Hospital for collecting samples. This work was supported by an intra-institution grant provided by Shahid Beheshti University of Medical Science’s Dean of Research.

Conflict of interest

None declared.



Type of Study: Original Article |

References
1. Yan JB, Xu M, Xiong C, Zhou DW, Ren ZR, Huang Y, et al. Rapid screening for chromosomal aneuploidies using array-MLPA. BMC Med Genet 2011; 12: 68. [DOI:10.1186/1471-2350-12-68]
2. Yusuf RZ, Naeem R. Cytogenetic abnormalities in products of conception: a relationship revisited. Am J Reprod Immunol 2004; 52: 88-96. [DOI:10.1111/j.1600-0897.2004.00196.x]
3. Hochstenbach R, Meijer J, van de Brug J, Vossebeld-Hoff I, Jansen R, van der Luijt RB, et al. Rapid detection of chromosomal aneuploidies in uncultured amniocytes by multiplex ligation-dependent probe amplification (MLPA). Prenat Diagn 2005; 25: 1032-1039. [DOI:10.1002/pd.1247]
4. Nicolaides KH. Screening for chromosomal defects. Ultrasound Obstet Gynecol 2003; 21: 313-321. [DOI:10.1002/uog.128]
5. Boormans EM, Birnie E, Oepkes D, Galjaard RJ, Schuring-Blom GH, van Lith JM, et al. Comparison of multiplex ligation-dependent probe amplification and karyotyping in prenatal diagnosis. Obstet Gynecol 2010; 115: 297-303. [DOI:10.1097/AOG.0b013e3181cbc652]
6. Los FJ, van Den Berg C, Wildschut HI, Brandenburg H, den Hollander NS, Schoonderwaldt EM, et al. The diagnostic performance of cytogenetic investigation in amniotic fluid cells and chorionic villi. Prenat Diagn 2001; 21: 1150-1158. [DOI:10.1002/pd.194]
7. Tabor A, Philip J, Madsen M, Bang J, Obel EB, Nørgaard-Pedersen B. Randomised controlled trial of genetic amniocentesis in 4606 low-risk women. Lancet 1986; 1: 1287-1293. [DOI:10.1016/S0140-6736(86)91218-3]
8. Golbus MS, Loughman WD, Epstein CJ, Halbasch G, Stephens JD, Hall BD. Prenatal genetic diagnosis in 3000 amniocenteses. N Engl J Med 1979; 300: 157-163. [DOI:10.1056/NEJM197901253000402]
9. Van Zwieten MC, Willems DL, Litjens LL, Schuring-Blom HG, Leschot N. How unexpected are unexpected findings in prenatal cytogenetic diagnosis? A literature review. Eur J Obstet Gynecol Reprod Biol 2005; 120: 15-21. [DOI:10.1016/j.ejogrb.2004.10.005]
10. Ogilvie CM, Donaghue C, Fox SP, Docherty Z, Mann K. Rapid prenatal diagnosis of aneuploidy using quantitative fluorescence-PCR (QF-PCR). J Histochem Cytochem 2005; 53: 285-288. [DOI:10.1369/jhc.4B6409.2005]
11. Gerdes T, Kirchhoff M, Lind AM, Larsen GV, Schwartz M, Lundsteen C. Computer-assisted prenatal aneuploidy screening for chromosome 13, 18, 21, X and Y based on multiplex ligation-dependent probe amplification (MLPA). Eur J Hum Genet 2005; 13: 171-175. [DOI:10.1038/sj.ejhg.5201307]
12. Slater HR, Bruno DL, Ren H, Pertile M, Schouten JP, Choo KH. Rapid, high throughput prenatal detection of aneuploidy using a novel quantitative method (MLPA). J Med Genet 2003; 40: 907-912. [DOI:10.1136/jmg.40.12.907]
13. Brothman AR, Persons DL, Shaffer LG. Nomenclature evolution: Changes in the ISCN from the 2005 to the 2009 edition. Cytogenet Genome Res 2009; 127: 1-4. [DOI:10.1159/000279442]
14. Van Opstal D, Boter M, de Jong D, van den Berg C, Brüggenwirth HT, Wildschut HI, et al. Rapid aneuploidy detection with multiplex ligation-dependent probe amplification: a prospective study of 4000 amniotic fluid samples. Eur J Hum Genet 2009; 17: 112-121. [DOI:10.1038/ejhg.2008.161]
15. Lionel Willatt, Sian M. Morgan. Shaffer LG, Slovak ML, Campbell LJ. An international system for human cytogenetic nomenclature. Hum Genet 2012; 126: 603-604. [DOI:10.1007/s00439-009-0726-6]
16. Sellner LN, Taylor GR. MLPA and MAPH: new techniques for detection of gene deletions. Hum Mutat 2004; 23: 413-419. [DOI:10.1002/humu.20035]
17. Kassirer JP. Incorporating patients' preferences into medical decisions. N Engl J Med 1994; 330: 1895-1896. [DOI:10.1056/NEJM199406303302611]
18. Ryan M, Diack J, Watson V, Smith N. Rapid prenatal diagnostic testing for Down syndrome only or longer wait for full karyotype: the views of pregnant women. Prenat Diagn 2005; 25: 1206-1211. [DOI:10.1002/pd.1309]
19. Kooper AJ, Faas BH, Kater-Baats E, Feuth T, Janssen JC, van der Burgt I, et al. Multiplex ligation-dependent probe amplification (MLPA) as a stand-alone test for rapid aneuploidy detection in amniotic fluid cells. Prenat Diagn 2008; 28: 1004-1010. [DOI:10.1002/pd.2111]
20. Kooper AJ, Faas BH, Feuth T, Creemers JW, Zondervan HH, Boekkooi PF, et al. Detection of chromosome aneuploidies in chorionic villus samples by multiplex ligation-dependent probe amplification. J Molec Diagn 2009; 11: 17-24. [DOI:10.2353/jmoldx.2009.070140]
21. Bui TH. Prenatal cytogenetic diagnosis: gone FISHing, BAC soon! Ultrasound Obstet Gynecol 2007; 30: 247-251. [DOI:10.1002/uog.5142]
22. Kuo WL, Tenjin H, Segraves R, Pinkel D, Golbus MS, Gray J. Detection of aneuploidy involving chromosomes 13, 18, or 21, by fluorescence in situ hybridization (FISH) to interphase and metaphase amniocytes. Am J Hum Genet 1991; 49:112-119.
23. Philip J, Bryndorf T, Christensen B. Prenatal aneuploidy detection in interphase cells by fluorescence in situ hybridization (FISH). Prenat Diagn 1994; 14: 1203-1215. [DOI:10.1002/pd.1970141306]
24. Mann K, Donaghue C, Fox SP, Docherty Z, Ogilvie CM. Strategies for the rapid prenatal diagnosis of chromosome aneuploidy. Eur J Hum Genet 2004; 12: 907-915. [DOI:10.1038/sj.ejhg.5201224]
25. Cirigliano V, Voglino G, Marongiu A, Ca-adas P, Ordo-ez E, Lloveras E, et al. Rapid prenatal diagnosis by QF-PCR: evaluation of 30,000 consecutive clinical samples and future applications. Ann N Y Acad Sci 2006; 1075: 288-298. [DOI:10.1196/annals.1368.039]
26. Adinolfi M, Sherlock J, Pertl B. Rapid detection of selected aneuploidies by quantitative fluorescent PCR. Bioessays 1995; 17: 661-664. [DOI:10.1002/bies.950170712]
27. Kozlowski P, Jasinska AJ, Kwiatkowski DJ. New applications and developments in the use of multiplex ligation-dependent probe amplification. Electrophoresis 2008; 29: 4627-4636. [DOI:10.1002/elps.200800126]
28. Sparkes R, Johnson JA, Langlois S, Wilson RD, Allen V, Blight C, et al. New molecular techniques for the prenatal detection of chromosomal aneuploidy. J Obstet Gynaecol Can 2008; 30: 617-627. [DOI:10.1016/S1701-2163(16)32896-1]
